Motorcycle Lift Table Working Principle and Structural Design Analysis

Motorcycle Lift Table Working Principle and Structural Design Analysis

The Motorcycle Lift Table is a specialized lifting device designed to raise motorcycles to a suitable working height for maintenance, inspection, repair, and servicing operations. By combining mechanical lifting structures with hydraulic or electric drive systems, it provides a safe, stable, and efficient solution for motorcycle workshops, service centers, and professional maintenance environments.

Understanding the working principle and structural design of a motorcycle lift table helps users select the right equipment and improve workshop efficiency and operational safety.

Working Principle of Motorcycle Lift Table

The working principle of a motorcycle lift table is based on converting mechanical energy into vertical lifting movement.

When the lifting system is activated, the power source drives the lifting mechanism to extend or retract. Depending on the design, motorcycle lift tables may use hydraulic cylinders, electric motors, lead screw systems, or mechanical drive mechanisms to generate lifting force.

The basic operating process includes:

Power input → Drive mechanism operation → Lifting structure movement → Platform elevation adjustment

During lifting, the support platform moves vertically while maintaining balance through the guide structure and reinforced frame system. When the desired height is reached, the locking mechanism or self-locking drive system maintains the motorcycle securely in position.

Main Structural Components

A motorcycle lift table consists of several key components that work together to ensure stable lifting performance.

Lifting Platform

The lifting platform is the main supporting surface where the motorcycle is placed.

The platform is designed with high-strength materials to withstand motorcycle weight and provide stable support during maintenance operations.

Many models include anti-slip surfaces, wheel clamps, front wheel holders, or adjustable fixing devices to prevent motorcycle movement during servicing.

The platform size and load capacity are designed according to different motorcycle types, including scooters, street motorcycles, touring motorcycles, and heavy-duty models.

Scissor Lift Mechanism

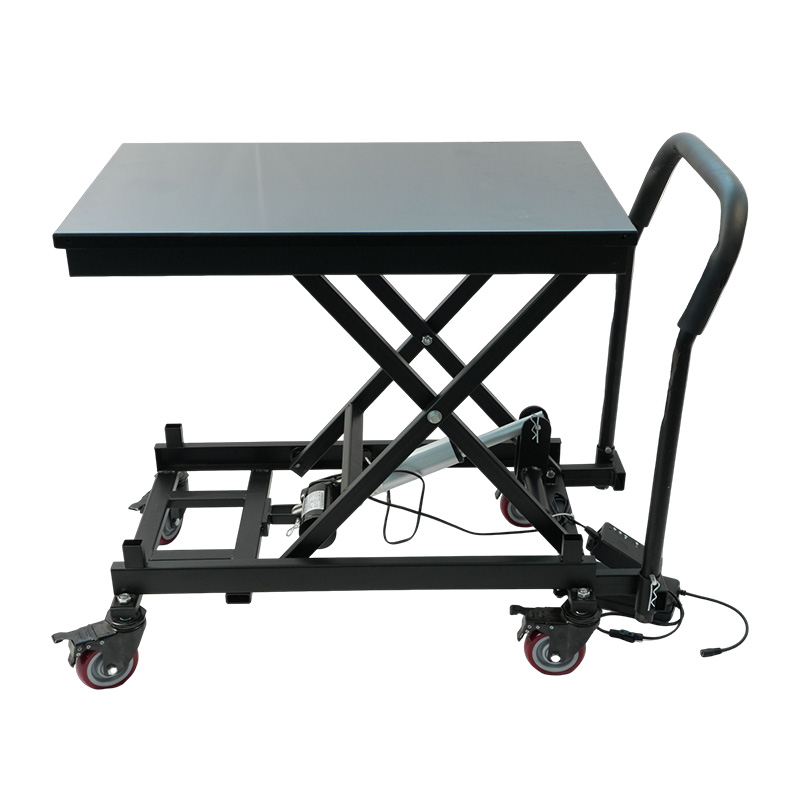

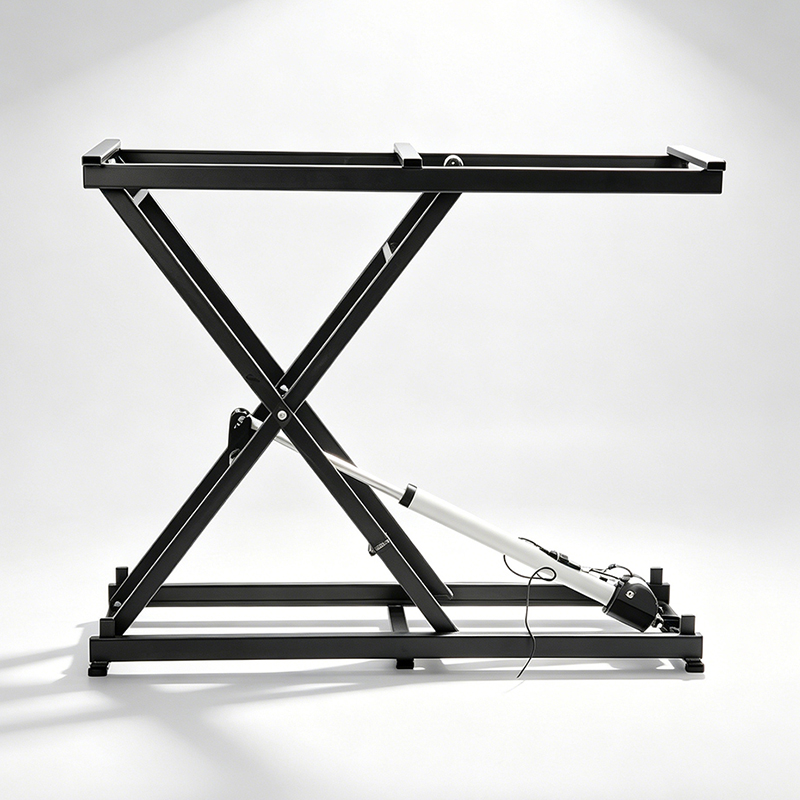

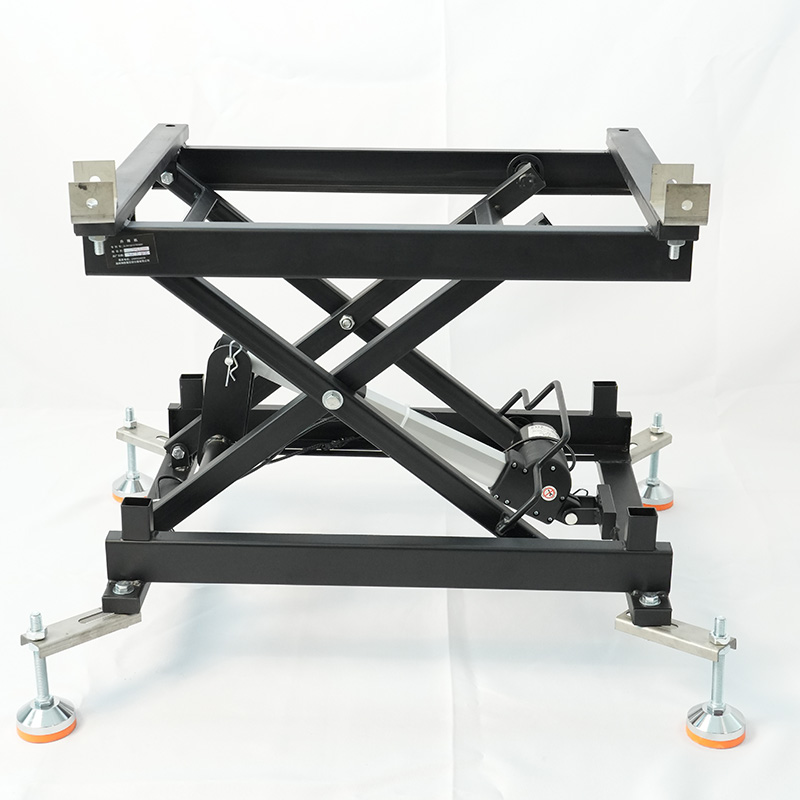

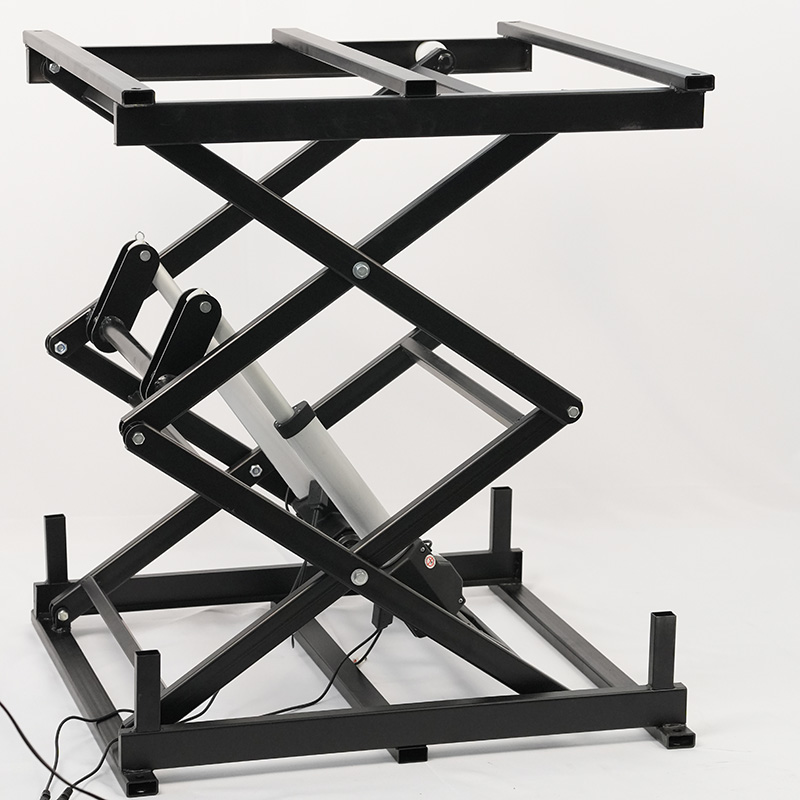

The scissor mechanism is one of the most common structures used in motorcycle lift tables.

The scissor lifting structure provides excellent stability by distributing lifting forces through interconnected support arms.

When the hydraulic cylinder or electric drive pushes the scissor arms outward, the platform rises vertically. When the mechanism retracts, the platform lowers smoothly.

This design offers advantages such as compact structure, strong load capacity, and reliable lifting performance.

Drive System

The drive system provides the power required for lifting operations.

Hydraulic systems use hydraulic cylinders and pumps to generate high lifting force, making them suitable for heavy motorcycles.

Electric models use motors combined with lead screws, gears, or belt systems to achieve controlled lifting movement.

The selection of drive technology directly affects lifting speed, load capacity, noise level, and maintenance requirements.

Frame Structure and Safety Components

The frame is the foundation of the motorcycle lift table.

High-strength steel structures are commonly used because they provide excellent durability and load-bearing capability.

The reinforced frame design ensures stability and reduces deformation under heavy loads.

Safety components may include mechanical locks, limit switches, overload protection systems, wheel restraints, and emergency stop functions.

These features improve operator safety during lifting and maintenance procedures.

Structural Design Considerations

The design of a motorcycle lift table requires careful consideration of several engineering factors.

Load capacity is one of the most important parameters, as the structure must safely support the motorcycle weight and additional service loads.

Platform stability ensures that the motorcycle remains secure during repair operations.

Lifting height range determines whether technicians can comfortably perform different maintenance tasks.

Material selection and manufacturing precision directly influence product durability and service life.

Manufacturing Process

The production process of a motorcycle lift table includes material cutting, welding, machining, surface treatment, assembly, and quality testing.

During manufacturing, frame strength, welding quality, dimensional accuracy, and mechanical performance are strictly controlled.

Steel components are commonly treated with powder coating or protective finishing to improve corrosion resistance.

After assembly, each lift table is tested for lifting performance, stability, load capacity, and safety functions before shipment.

Application Areas

Motorcycle lift tables are widely used in:

Motorcycle repair workshops

Professional service centers

Racing maintenance facilities

Motorcycle dealerships

Personal garages

They help technicians improve working efficiency, reduce physical strain, and create safer maintenance conditions.

Selecting the correct model according to motorcycle weight, platform size, lifting height, drive type, and working environment ensures optimal performance.

Maintenance and Safety Considerations

Regular maintenance is essential for reliable operation.

Check hydraulic systems, electrical components, mechanical joints, and safety locks regularly.

Keep moving parts properly lubricated to reduce wear and improve service life.

Operators should always follow recommended load limits and use proper fixing devices before lifting.

Conclusion

The Motorcycle Lift Table combines advanced lifting mechanisms, reinforced structures, and safety control systems to provide reliable motorcycle maintenance solutions.

Through optimized structural design and precise manufacturing processes, modern motorcycle lift tables offer excellent stability, durability, and operational efficiency for professional repair applications.

References

1. ISO 9001 – Quality Management Systems and Manufacturing Quality Control

2. ISO 12100 – Safety of Machinery: Risk Assessment and Risk Reduction

3. ISO 13849-1 – Safety-Related Parts of Control Systems

4. ASME B30.1 – Jacks, Industrial Lifting Devices, and Related Equipment Safety Guidelines

5. OSHA Machine Safety Guidelines – Safe Operation and Maintenance of Lifting Equipment
