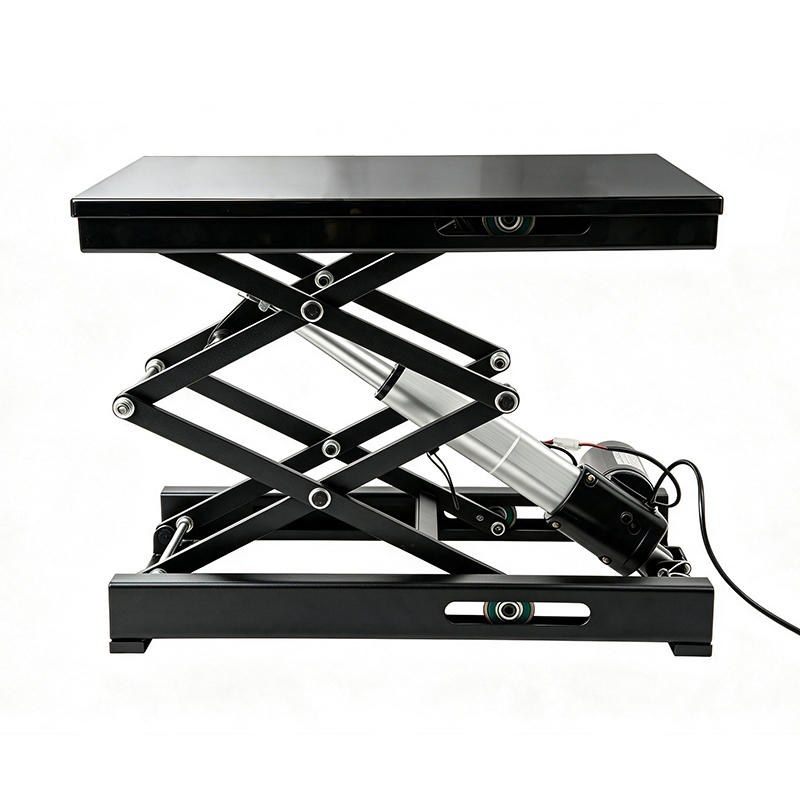

280×750 Double-Layer Single-Motor Lifting Frame

280×750 Double-Layer Single-Motor Lifting Frame

The 280×750 Double-Layer Single-Motor Lifting Frame is a heavy-duty electric lifting solution designed for height-adjustable furniture, manicure tables, beauty equipment, workstations, medical furniture, and other applications requiring a wide vertical adjustment range. With its double-layer support structure and single-motor drive system, the frame combines strong load-bearing performance, stable movement, and convenient electric height adjustment.

With a compact 280×750 mm structural footprint, this lifting frame provides a practical solution for equipment requiring a longer and wider support configuration. Its robust construction makes it suitable for professional environments where stability and durability are important.

Large Height Adjustment Range

The lifting frame has a closed height of approximately 160 mm and can extend to a maximum height of approximately 800 mm. This provides a substantial vertical adjustment range, allowing users to easily adapt the working height to different applications, furniture designs, and ergonomic requirements.

The double-layer lifting structure helps maintain stability throughout the lifting process while providing effective support for the mounted tabletop or equipment. The frame can be manufactured using durable metal materials and finished with a protective coating for improved resistance to wear and corrosion.

Single-Motor Electric Lifting System

The frame is powered by a single electric motor, providing convenient and controlled height adjustment without manual lifting. The complete lifting process takes approximately 50 seconds, making it suitable for applications where gradual and reliable height adjustment is preferred.

With a dynamic load capacity of approximately 250 kg, the lifting frame can support substantial loads when correctly installed. It is suitable for countertops, salon equipment, tools, instruments, and other equipment within the specified load range.

Stable and Durable Construction

The double-layer guide and support mechanism is designed to provide stable vertical movement and reduce unwanted shaking during operation. The reinforced structure is suitable for frequent daily use and provides a reliable foundation for height-adjustable equipment.

The lifting frame can be used in electric manicure tables, beauty workstations, adjustable salon furniture, office furniture, medical equipment, rehabilitation furniture, and customized lifting systems.

Weight and Packaging Information

The lifting frame has a net weight of approximately 26.5 kg, while the packaged weight is approximately 28.1 kg. The standard packaging dimensions are approximately 770×290×185 mm, providing suitable protection during storage, handling, and international transportation.

OEM and Customization Options

For international wholesalers, distributors, furniture manufacturers, and OEM customers, the 280×750 Double-Layer Single-Motor Lifting Frame can be customized according to specific requirements. Available options may include lifting height, motor specifications, load capacity, mounting dimensions, control system, frame color, surface treatment, logo, and packaging.

Combining a 250 kg dynamic load capacity, 800 mm maximum height, 160 mm closed height, and reliable single-motor electric operation, this lifting frame provides a strong and flexible foundation for modern height-adjustable furniture and professional equipment.
