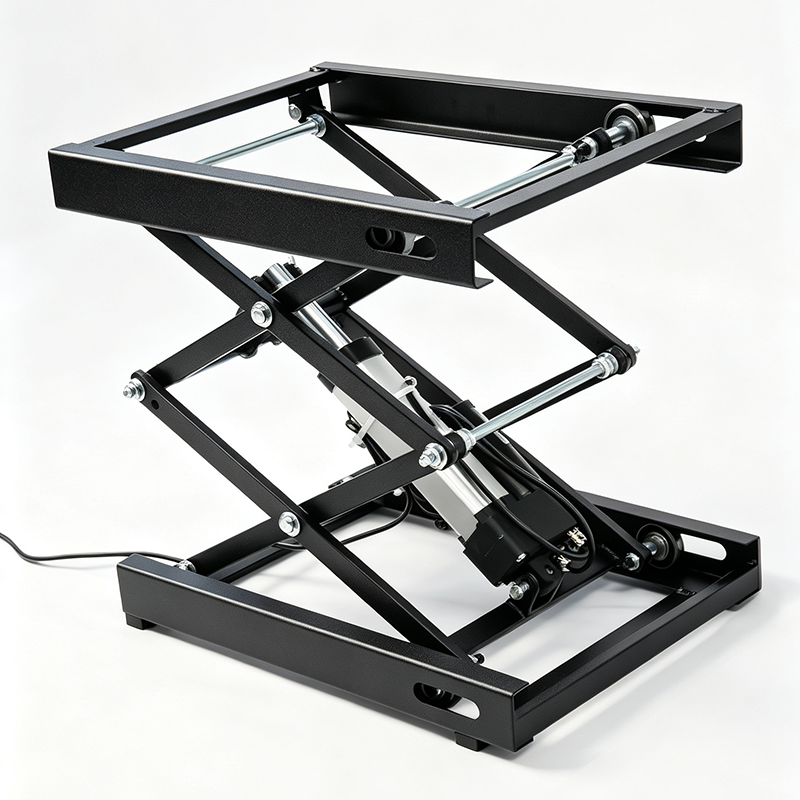

280×500 Double-Layer Single-Motor Lifting Frame

280×500 Double-Layer Single-Motor Lifting Frame

The 280×500 Double-Layer Single-Motor Lifting Frame is a compact and robust electric lifting structure designed for height-adjustable manicure tables, beauty equipment, salon furniture, workstations, and other applications requiring reliable vertical adjustment. Featuring a double-layer support structure and single-motor electric drive, the lifting frame combines strong load-bearing capability with smooth and convenient height adjustment.

With a compact 280×500 mm footprint, this model is suitable for furniture and equipment with limited installation space. Its practical structural design provides stable support while allowing the connected tabletop or equipment to move vertically according to different working requirements.

Compact Structure and Large Lifting Range

In the closed position, the lifting frame has a height of approximately 110 mm, making it easy to integrate into compact furniture structures. During operation, the frame can extend to a maximum height of approximately 480 mm, providing a large adjustment range for different users and working positions.

The double-layer construction helps improve overall structural stability and resistance to lateral movement during lifting and lowering. The frame can be manufactured from durable metal materials and finished with a protective coating for long-term use in professional environments.

Powerful Single-Motor Lifting System

The frame is equipped with a single electric motor, providing a simple and efficient solution for powered height adjustment. The lifting and lowering process takes approximately 25 seconds, allowing users to adjust the working height conveniently without manual effort.

The lifting system provides a dynamic load capacity of approximately 230 kg, making it suitable for supporting manicure countertops, salon equipment, tools, and other relatively heavy loads when properly installed and configured.

Stable and Reliable Performance

The double-layer guide and support structure is designed to maintain stable movement during repeated operation. The lifting frame is suitable for applications where smooth height adjustment and dependable mechanical support are important.

Its compact design, high load capacity, and electric operation make it especially suitable for electric manicure tables, adjustable beauty tables, salon workstations, medical and rehabilitation furniture, office equipment, and customized lifting furniture.

Product Weight and Packaging

The lifting frame has a net weight of approximately 16.7 kg, while the packaged weight is approximately 17.3 kg. Standard packaging dimensions are approximately 520×310×160 mm, providing a compact package for transportation, storage, and international shipping.

OEM and Customization Options

For furniture manufacturers, wholesalers, distributors, and international OEM customers, the 280×500 Double-Layer Single-Motor Lifting Frame can be customized according to specific application requirements. Options may include lifting stroke, motor specifications, load capacity, mounting dimensions, control system, frame color, surface treatment, logo, and packaging.

Combining a 230 kg dynamic load capacity, 480 mm maximum height, compact 110 mm closed height, and single-motor electric operation, this lifting frame provides a practical and durable foundation for modern height-adjustable furniture and professional equipment.
